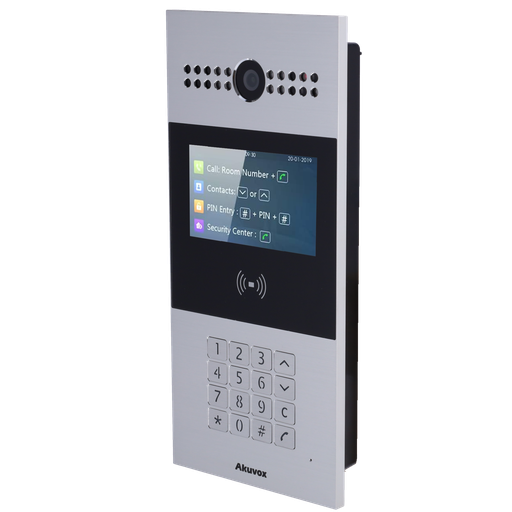

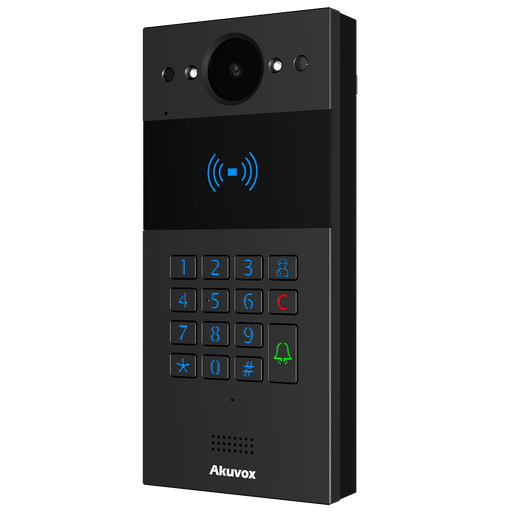

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 3 relay outputs to manage up to 3 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, as well as a keypad for numeric codes. Temporary PIN codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Your 4.3" screen allows you to display the directory of users to call, along with your numeric keypad, to enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video intercom with 2 Mpx camera for appartements
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF card reader
Opening with temporary PIN keys
Remote door opening
3 door relay outputs
12 V/400 mA output (when powered by PoE)
Wiegand ports and RS485
4.3" configurable full color TFT display
Customizable wallpaper and screensaver
LED illumination on keypad and configurable card reader
Suitable for exterior IP65
Aluminium alloy surface
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

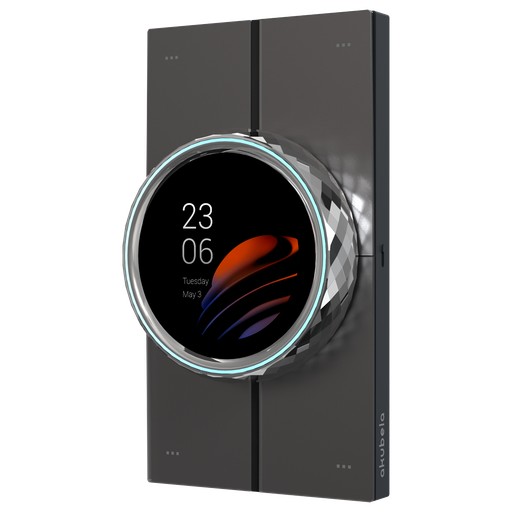

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 2.1 touch screen for easy operation by the user. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Advanced configurable functions: standard SIP protocol 2.0 (allows integration with third-party PBXs), Bluetooth connection (allows pairing of headsets or speakers for use during calls) and ZigBee connection (allows addition of SmartHome equipment).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus or Bela Home mobile application, the end user can receive calls, open the door or view the panel camera live, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
Akubela range
TFT Android 10.0 display for 2.1" home automation
Monitor function for video intercom
Integrated dual microphone and speaker
Two-way audio with Crystal Clear technology
Automatic voice detection
4 physical buttons
Proximity, light, temperature, humidity and gravity sensors
Multiple screen extensions
TCP/IP, WiFi, Bluetooth and ZigBee
1 PoE port IEEE802.3af
Recessed mounting in additional standard gear box
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices via BelaHome APP or SmartPlus
4 free users included per house
Call and user directory
Intelligent scene creation and automation
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with installable Google Services
Remote configuration access for installation

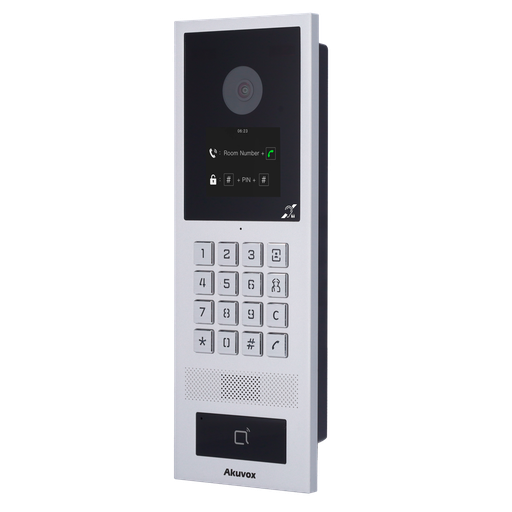

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with 125 kHz RFID EM and 13.56 MHz MF technology, NFC, Bluetooth, as well as keypad for numeric codes. Temporary PIN codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Your 2.8" screen allows you to display the directory of users to call, along with your numeric keypad, to enter PIN codes for access.
Its exterior grade IP66 allows it to be installed outdoors. In addition, its IK08 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), BIM (magnetic induction loop for the hearing impaired), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBXs).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video intercom with 2 Mpx camera for appartements
Main camera with HDR
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
Integrated BIM (magnetic induction loop) for people with hearing aids
Night vision with IR illumination
TCP/IP Connection
PoE+ IEEE802.3at and 2 LP wires with converter AK-NC-2
Integrated EM/MF and NFC card reader
Opening by BLE and PIN and temporary PIN keys
Remote door opening
2 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/500 mA output (when powered by PoE+)
Wiegand ports and RS485
2.8" color TFT screen
Customizable screensaver
Configurable LED illumination on keypad
Suitable for exterior IP66
Vandal-resistant aluminum alloy surface IK08
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

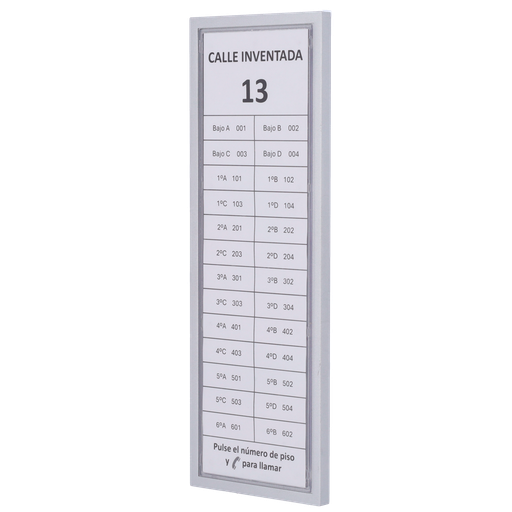

Akuvox
Customizable information module
Includes white sheet to indicate call directions
Compatible with AK-S532 board
Surface mounting or flush mounting with additional bracket
Made of aluminum and transparent methacrylate

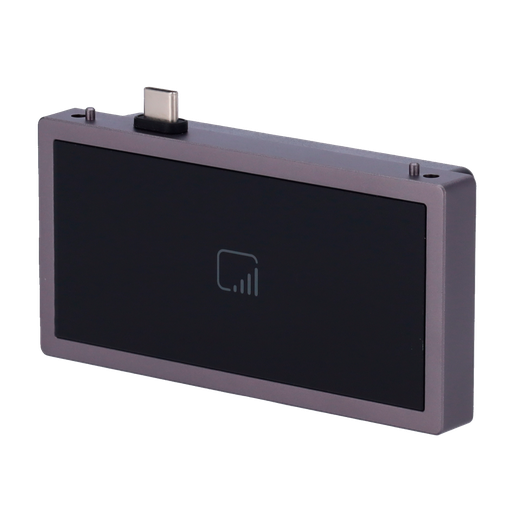

Akuvox
Peripheral module for video door entry system
Add LTE connection (4G)
USB connection
Compatible with model AK-S535
Suitable for exterior IP66
AK-BR-S535-x-MODULE is required for installation

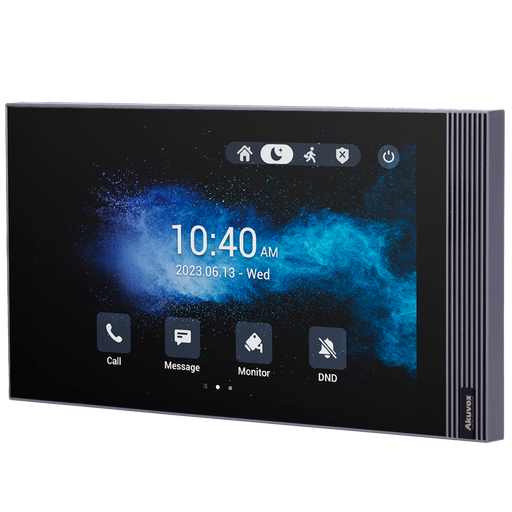

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 7" touch screen for easy user operation, with IPS technology that offers higher image quality.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
Linux IPS display for 7" video door entry system
Easy UI user interface
Built-in microphone and speaker
Two-way audio with Crystal Clear technology
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP
1 PoE port IEEE802.3af
Surface mounting without the need for additional accessories
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks

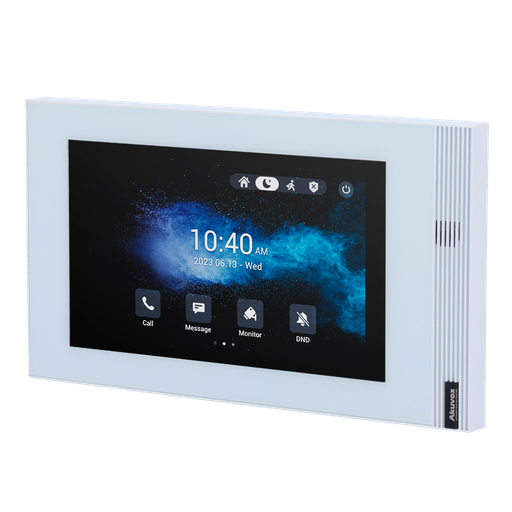

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 7" touch screen for easy user operation, with IPS technology that offers higher image quality.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
Linux IPS display for 7" video door entry system
Easy UI user interface
Built-in microphone and speaker
Two-way audio with Crystal Clear technology
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks
White colour

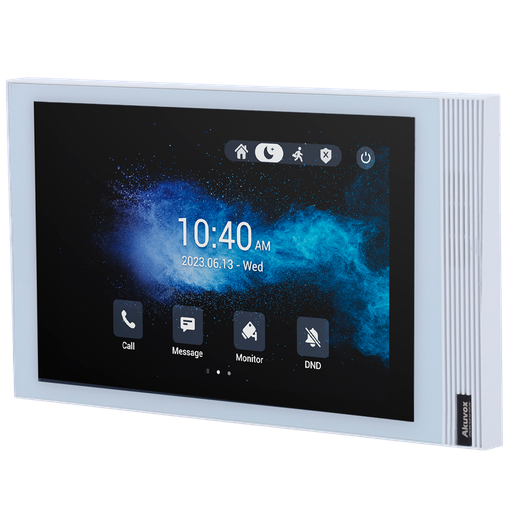

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 8" touch screen for easy user operation, with IPS technology that offers higher image quality. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: ONVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBX telephone exchanges), Bluetooth connection (allows pairing headphones or speakers for use during calls) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IPS Android 12.0 display for 8" video door phone
Easy UI user interface
Built-in microphone and speaker
Two-way audio with Crystal Clear technology with automatic gain control
Automatic voice detection
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP, WiFi and Bluetooth
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with installable Google Services
Remote configuration access for installation
White colour

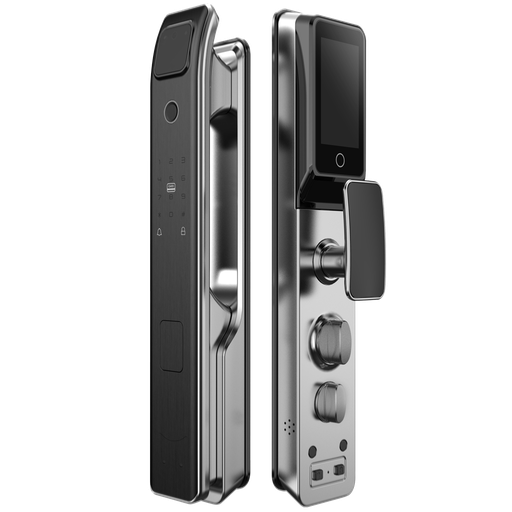

Akuvox
Akubela range
Biometric stand-alone smart lock
Identification by fingerprint, MF card, password or APP
Opening with temporary PIN keys
Capacity 50 users, 50 fingerprints, 50 passwords and 50 cards
Video intercom function: 2 Mpx camera (exterior) and 4" color touch screen (interior)
Integrated speaker and microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
Radar for people detection
Communication via WiFi
Aluminum alloy body
Reversible handle
Wireless installing
Battery of 5.000 mAh
Autonomy up to 6 months with 10 openings per day
Hidden mechanical cylinder and emergency key
Adaptable for doors from 40 to 100mm
Mechanical lock with latch included
Push notifications and device-to-device calls through the BelaHome App
Call and user directory
Intelligent scene creation and automation
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Interface and voices in English
Remote configuration access for installation

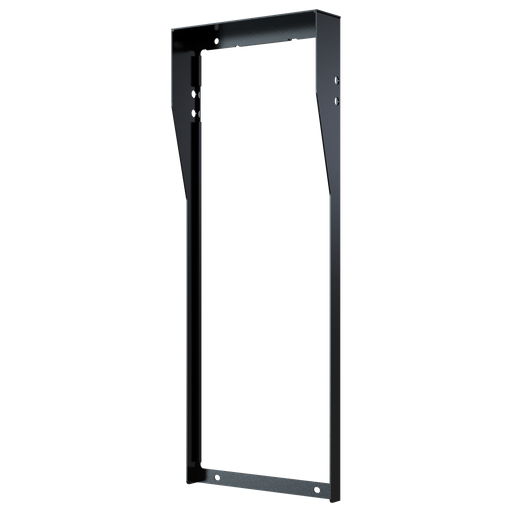

Akuvox
Recessed rain cover for video intercom
With protective shield
Compatible with video door entry system AK-X915S
Dimensions: 378 (H) x 142 (W) x 35 (D) mm
Made of galvanized steel
Necessary AK-BR-X915-F embedding bracket for installation

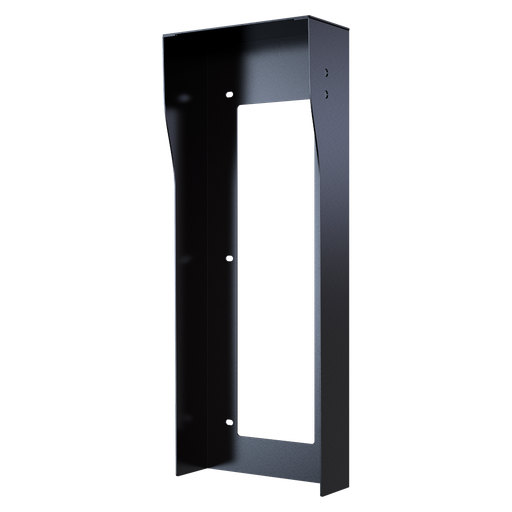

Akuvox
Surface rain cover for video door entry system
With protective shield
Compatible with video door entry system AK-X915S
Dimensions: 353 (H) x 134 (W) x 62 (D) mm
Made of galvanized steel

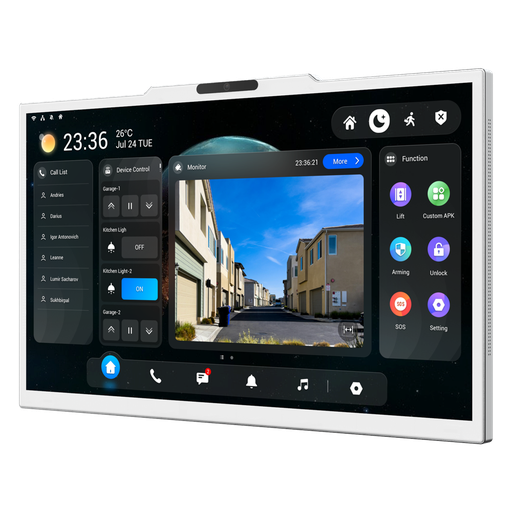

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 15.6" touch screen for easy user operation, with IPS technology that offers higher image quality. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 2 relay output you can act on different elements, such as doors or bells to be triggered during calls.
Advanced configurable functions: integrated camera (allows video calls), ONVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs), Bluetooth connection (allows pairing headphones or speakers for use during calls) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IPS Android 14.0 display for 15.6" video door phone
Easy UI user interface
Aluminum frame
Built-in camera of 5 Mpx
Built-in quad microphone and loudspeaker
Two-way audio with Crystal Clear technology with automatic gain control
Automatic voice detection
1 buzzer input, 8 alarm input and 1 HDMI input
2 relay outputs
Image capture and recording
Multiple screen extensions
TCP/IP, WiFi, RS485 and Bluetooth
1 PoE+ port IEEE802.3at
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with installable Google Services
Remote configuration access for installation

AMC

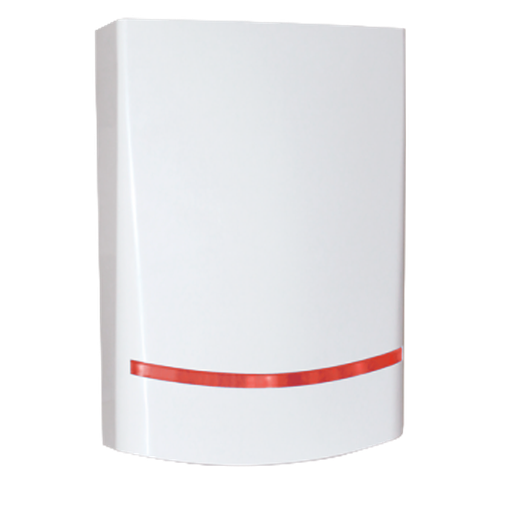

Outdoor siren
Wired
100 dB
Red warning light
Suitable for exterior use
Grade 2 approved
Main power supply 13.8V max 0.6 A
Backup power: 12 V battery (not included)
IP54
White colour

AMC
PIR volumetric detector, pet immune, double technology
Certificate Grade 2
Double technology: 1 IR, 1 microwaves
Motion detection indicator
Detection: 7 m Range / 15 m / H: 100º
End-of-line (EOL) resistors selectable by jumpers
Pulse, range and LED adjustable by switch
AND (dual technology) / OR alarm function (only with microwave)
Tamper-resistant opening
Pet Proof ≤ 15Kg
Power 13.8VDC
Compatible with Ajax Transmitter (Transmitter and MultiTransmitter)
Interior use
White colour

AMC

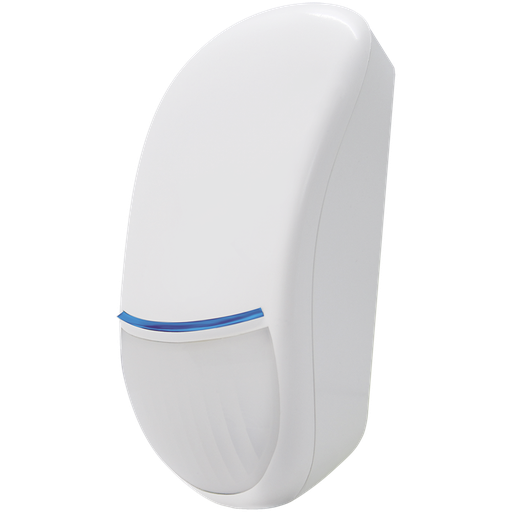

PIR volumetric detector, pet immune, double technology
Certificate Grade 3
Double technology: 1 IR, 1 microwaves
Anti-masking sensor
Motion detection indicator
Detection: 7 m Range / 15 m / H: 100º
End-of-line (EOL) resistors selectable by jumpers
Pulse, range and LED adjustable by switch
AND (dual technology) / OR alarm function (only with microwave)
Tamper-resistant opening
Pet Proof ≤ 15Kg
Power 13.8VDC
Compatible with Ajax Transmitter (Transmitter and MultiTransmitter)
Interior use
White colour

AMC
Analog volumetric PIR detector
Motion detection indicator
Detection: Range 12m / H: 100º
End-of-line (EOL) resistors selectable by jumpers
Tamper-resistant opening
Pet Proof ≤ 15Kg
Power 13.8VDC
Compatible with Ajax Transmitter (Transmitter and MultiTransmitter)
Interior use
White colour

AMC

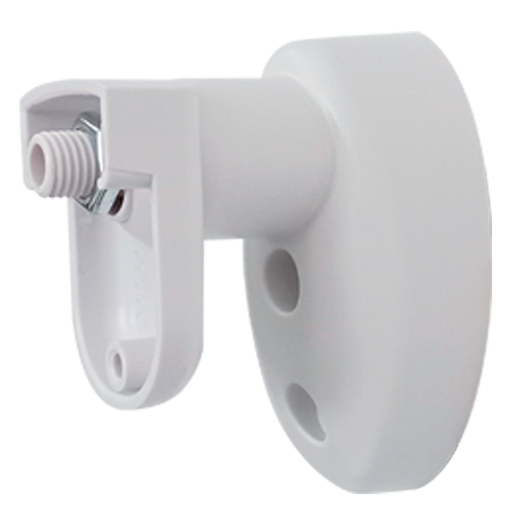

Wall bracket
Compatible with AMC detectors PIR volumetric detector
White colour

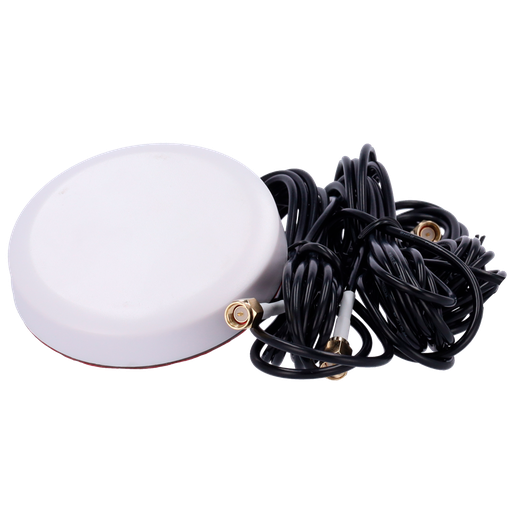

Antenna 4G with GPS and Wi-Fi
Vehicle roof mounting
Frequency 4G 824-2700MHz
Antenna gain 4G 3dBi
Wi-Fi antenna gain 3dBi
GPS antenna gain 25dBi
SMA Male Connector
RG174 3 meters long Cable
Impedance 50 OHM
Temperature -20ºC to 85ºC
White colour

Aqara

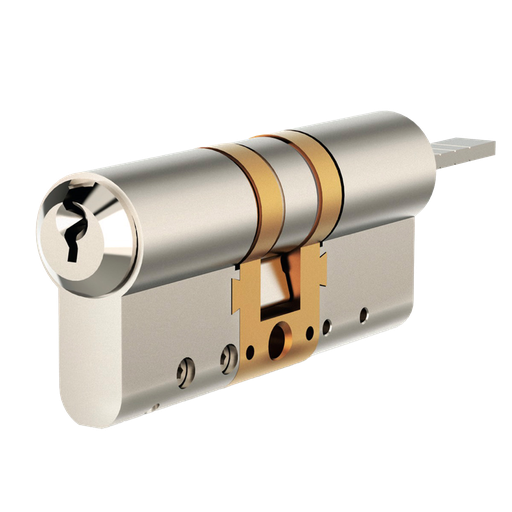

Adjustable Cylinder
(Compatible with Aqara Smart Lock U200)
